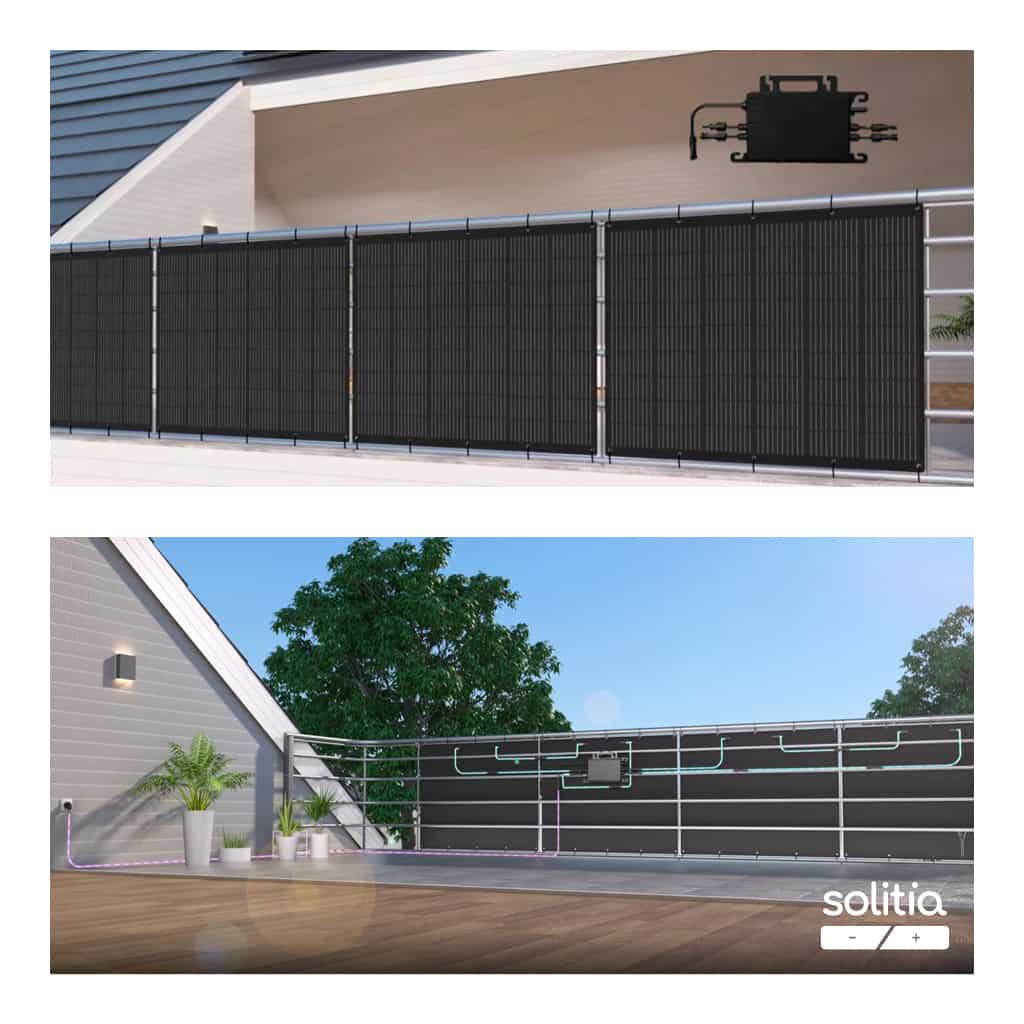

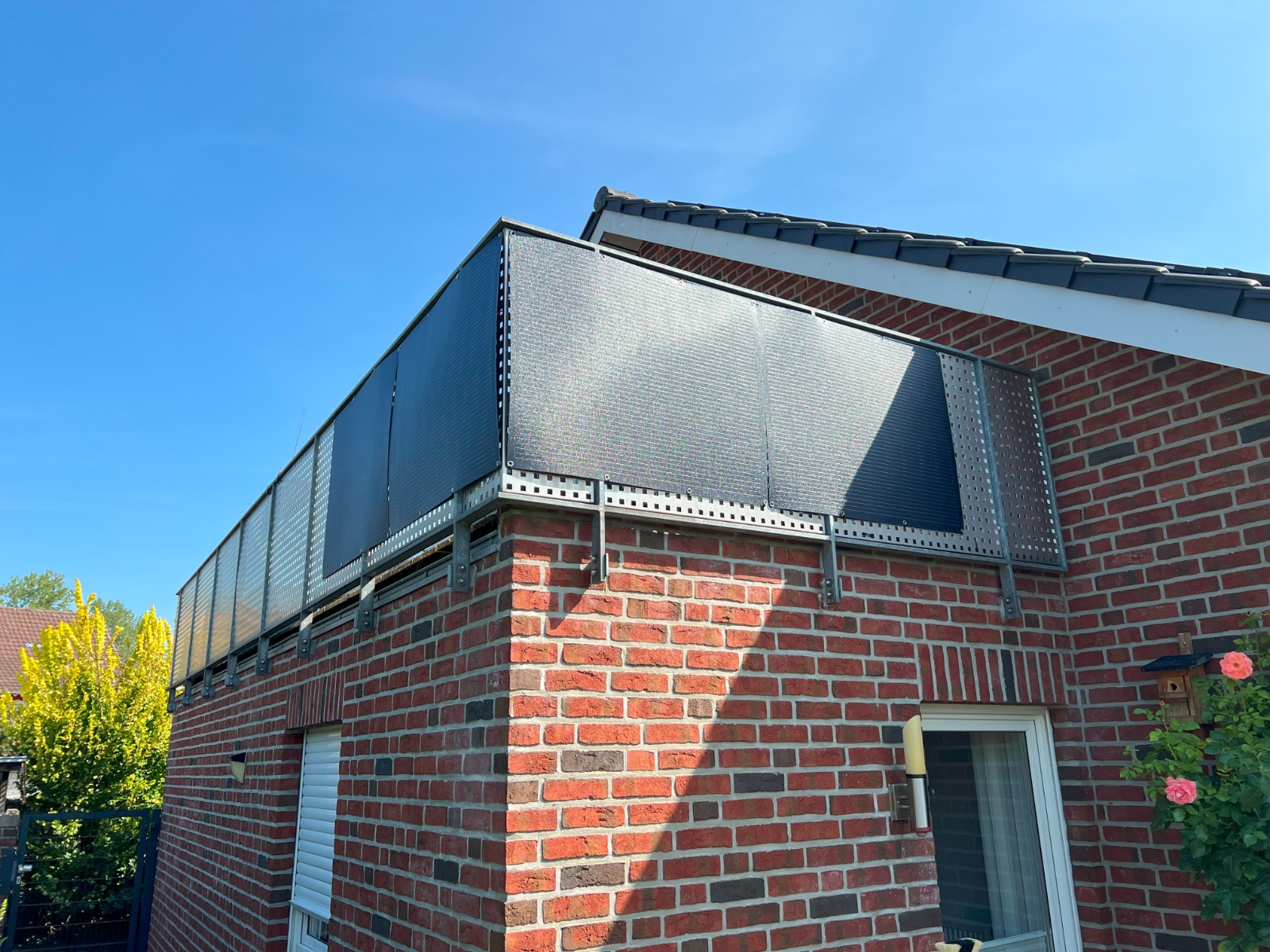

Kit Solar de Autoconsumo auto instalable para Balcón Plug&Play con placas solares flexibles 800W

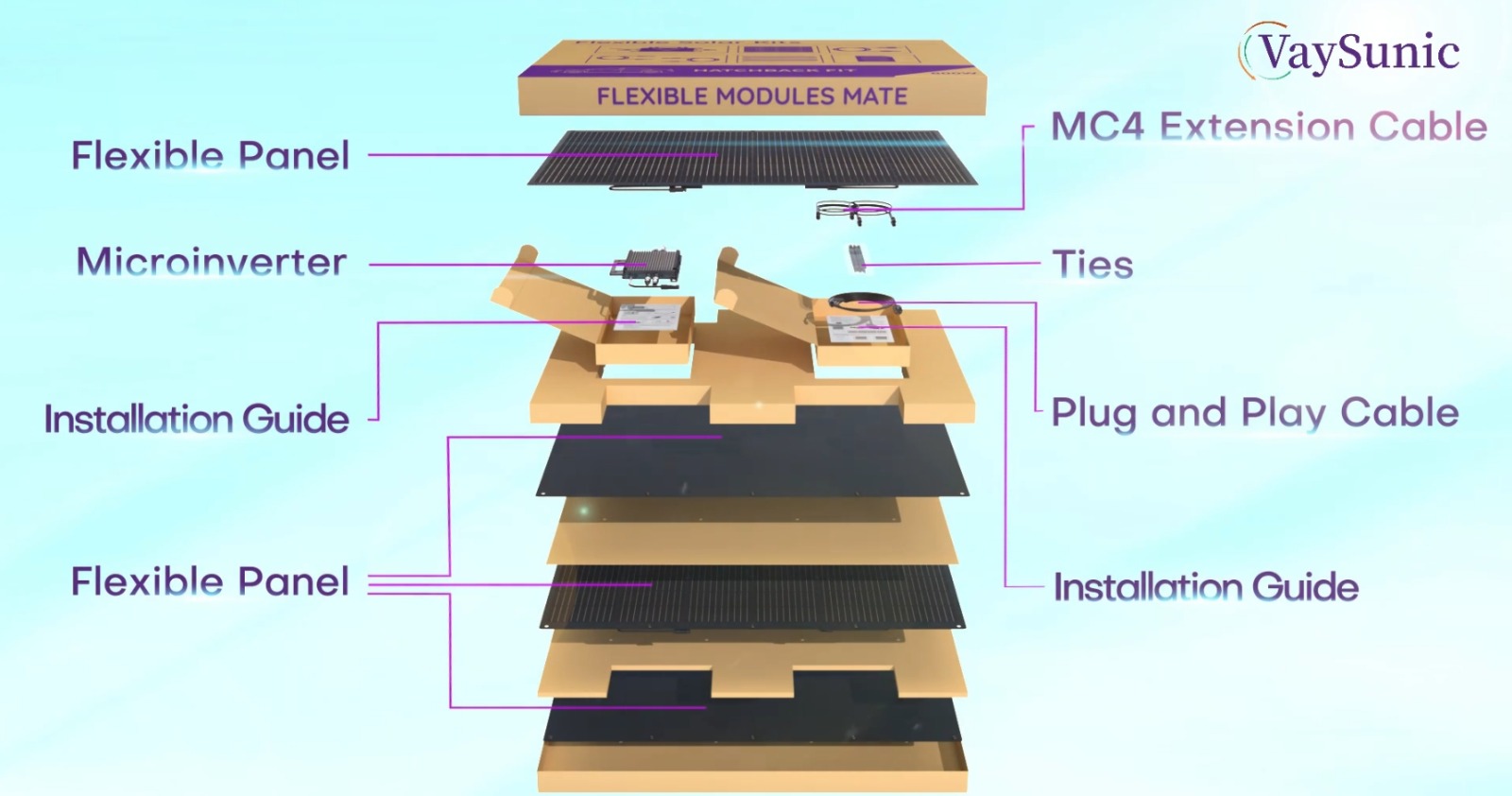

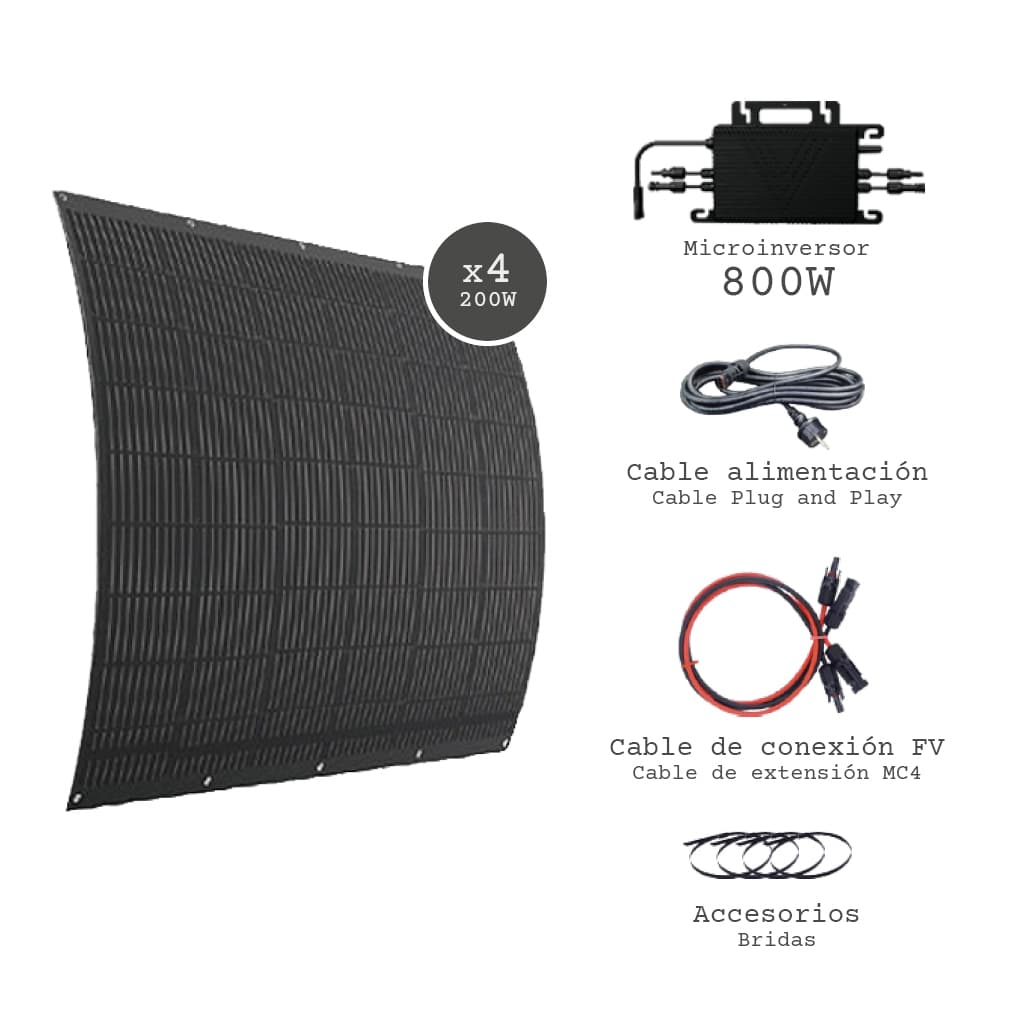

Componentes del Kit:

• 4 Placas Solares flexibles de 200W
• 1 Microinversor de 800W
• 1 Cable de AC Shucko
• Sistema de Fijado de las placas

Características técnicas Placas Solares Flexibles:

Solar Panel Model: VF200W (BK)
Power: 200W
Vmp ~ Voltage at Maximum Power: 15.42V
Voc ~ Open-circuit Voltage: 18.71V
Isc ~ Open-circuit Current: 13.45A
Imp ~ Maximum Power Current: 13.01A
PV module dimensions in mm (L x W x H): 1140mm x 915mm x 3mm
PV module weight in kilograms: 3.4kg

Características Técnicas Microinversor:

Microinverter Max DC Power: 870W
Microinverter Max DC Voltage: 63V
MPPT Voltage Range: 14V to 63V
Microinverter dimensions in mm (L x W x H): 274mm x 222mm x 36.5mm
Microinverter weight in kilograms: 3.22kg
Packing dimensions in mm (L x W x H): 1180mm x 950mm x 100mm

Packing weight in kilograms: 23.5kg

VIDEO DEMOSTRACION INSTALACION

MANUEL DE INSTALACION PDF
